The Image class, representing one medical image, stores a 4D tensor, whose voxels encode, e.g., signal intensity or segmentation labels, and the corresponding affine transform, typically a rigid (Euclidean) transform, to convert voxel indices to world coordinates in mm. Arbitrary fields such as acquisition parameters may also be stored.

Subclasses are used to indicate specific types of images, such as ScalarImage and LabelMap, which are used to store, e.g., CT scans and segmentations, respectively.

An instance of Image can be created using a filepath, a PyTorch tensor, or a NumPy array. This class uses lazy loading, i.e., the data is not loaded from disk at instantiation time. Instead, the data is only loaded when needed for an operation (e.g., if a transform is applied to the image).

Images can be sliced using the standard NumPy / PyTorch slicing syntax. This operation updates the coordinates origin in the affine matrix correspondingly.

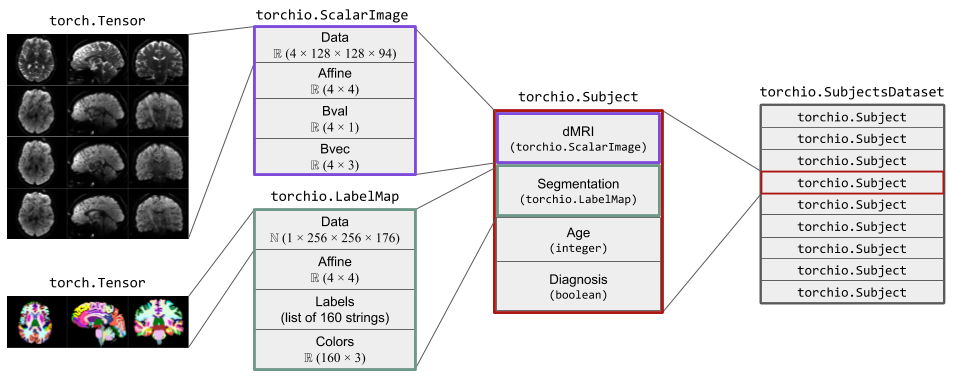

The figure below shows two instances of Image. The instance of ScalarImage contains a 4D tensor representing a diffusion MRI, which contains four 3D volumes (one per gradient direction), and the associated affine matrix. Additionally, it stores the strength and direction for each of the four gradients. The instance of LabelMap contains a brain parcellation of the same subject, the associated affine matrix, and the name and color of each brain structure.

Data structures

ScalarImage

ScalarImage

Bases: Image

Image whose pixel values represent scalars.

Examples:

>>> import torch
>>> import torchio as tio
>>> # Loading from a file
>>> t1_image = tio.ScalarImage('t1.nii.gz')
>>> dmri = tio.ScalarImage(tensor=torch.rand(32, 128, 128, 88))
>>> image = tio.ScalarImage('safe_image.nrrd', check_nans=False)
>>> data, affine = image.data, image.affine
>>> affine.shape
(4, 4)
>>> image.data is image[tio.DATA]
True
>>> image.data is image.tensor
True
>>> type(image.data)
torch.Tensor

See Image for more information.

affine property writable

Affine matrix to transform voxel indices into world coordinates.

data property writable

Tensor data (same as [Image.tensor][]).

tensor property

Tensor data (same as [Image.data][]).

shape property

Tensor shape as \((C, W, H, D)\).

spatial_shape property

Tensor spatial shape as \((W, H, D)\).

height property

Image height, if 2D.

width property

Image width, if 2D.

orientation property

Orientation codes.

orientation_str property

Orientation as a string.

spacing property

Voxel spacing in mm.

origin property

Center of first voxel in array, in mm.

itemsize property

Element size of the data type.

memory property

Number of Bytes that the tensor takes in the RAM.

bounds property

Position of centers of voxels in smallest and largest indices.

num_channels property

Get the number of channels in the associated 4D tensor.

set_data(tensor)

Store a 4D tensor in the data key and attribute.

Parameters:

Name Type Description Default
tensor TypeData

4D tensor with dimensions \((C, W, H, D)\).

 required

axis_name_to_index(axis)

Convert an axis name to an axis index.

Parameters:

Name Type Description Default
axis str

Possible inputs are 'Left', 'Right', 'Anterior', 'Posterior', 'Inferior', 'Superior'. Lower-case versions and first letters are also valid, as only the first letter will be used.

 required
Note

If you are working with animals, you should probably use 'Superior', 'Inferior', 'Anterior' and 'Posterior' for 'Dorsal', 'Ventral', 'Rostral' and 'Caudal', respectively.

Note

If your images are 2D, you can use 'Top', 'Bottom', 'Left' and 'Right'.

flip_axis(axis) staticmethod

Return the opposite axis label. For example, 'L' -> 'R'.

Parameters:

Name Type Description Default
axis str

Axis label, such as 'L' or 'left'.

 required

get_bounds()

Get minimum and maximum world coordinates occupied by the image.

load()

Load the image from disk.

Returns:

Type Description
None

Tuple containing a 4D tensor of size \((C, W, H, D)\) and a 2D
None

\(4 \times 4\) affine matrix to convert voxel indices to world
None

coordinates.

unload()

Unload the image from memory.

Raises:

Type Description
RuntimeError

If the images has not been loaded yet or if no path is available.

save(path, squeeze=None)

Save image to disk.

Parameters:

Name Type Description Default
path TypePath

String or instance of pathlib.Path.

 required
squeeze bool | None

Whether to remove singleton dimensions before saving. If None, the array will be squeezed if the output format is JP(E)G, PNG, BMP or TIF(F).

 None

numpy()

Get a NumPy array containing the image data.

as_sitk(**kwargs)

Get the image as an instance of [sitk.Image][].

from_sitk(sitk_image) classmethod

Instantiate a new TorchIO image from a [sitk.Image][].

Examples:

>>> import torchio as tio
>>> import SimpleITK as sitk
>>> sitk_image = sitk.Image(20, 30, 40, sitk.sitkUInt16)
>>> tio.LabelMap.from_sitk(sitk_image)
LabelMap(shape: (1, 20, 30, 40); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 93.8 KiB; dtype: torch.IntTensor)
>>> sitk_image = sitk.Image((224, 224), sitk.sitkVectorFloat32, 3)
>>> tio.ScalarImage.from_sitk(sitk_image)
ScalarImage(shape: (3, 224, 224, 1); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 588.0 KiB; dtype: torch.FloatTensor)

as_pil(transpose=True)

Get the image as an instance of [PIL.Image][].

Note

Values will be clamped to 0-255 and cast to uint8.

Note

To use this method, Pillow needs to be installed: pip install Pillow.

to_gif(axis, duration, output_path, loop=0, rescale=True, optimize=True, reverse=False)

Save an animated GIF of the image.

Parameters:

Name Type Description Default
axis int

Spatial axis (0, 1 or 2).

 required
duration float

Duration of the full animation in seconds.

 required
output_path TypePath

Path to the output GIF file.

 required
loop int

Number of times the GIF should loop. 0 means that it will loop forever.

 0
rescale bool

Use RescaleIntensity to rescale the intensity values to \([0, 255]\).

 True
optimize bool

If True, attempt to compress the palette by eliminating unused colors. This is only useful if the palette can be compressed to the next smaller power of 2 elements.

 True
reverse bool

Reverse the temporal order of frames.

 False

get_center(lps=False)

Get image center in RAS+ or LPS+ coordinates.

Parameters:

Name Type Description Default
lps bool

If True, the coordinates will be in LPS+ orientation, i.e. the first dimension grows towards the left, etc. Otherwise, the coordinates will be in RAS+ orientation.

 False

plot(return_fig=False, **kwargs)

Plot image.

show(viewer_path=None)

Open the image using external software.

Parameters:

Name Type Description Default
viewer_path TypePath | None

Path to the application used to view the image. If None, the value of the environment variable SITK_SHOW_COMMAND will be used. If this variable is also not set, TorchIO will try to guess the location of ITK-SNAP and 3D Slicer .

 None

Raises:

Type Description
RuntimeError

If the viewer is not found.

hist(**kwargs)

Plot histogram.

to_video(output_path, frame_rate=15, seconds=None, direction='I', verbosity='error')

Create a video showing all image slices along a specified direction.

Parameters:

Name Type Description Default
output_path TypePath

Path to the output video file.

 required
frame_rate float | None

Number of frames per second (FPS).

 15
seconds float | None

Target duration of the full video.

 None
direction str
'I'
verbosity str
'error'
Note

Only frame_rate or seconds may (and must) be specified.

LabelMap

LabelMap

Bases: Image

Image whose pixel values represent segmentation labels.

A sequence of paths to 3D images can be passed to create a 4D image. This is useful to create a tissue probability map (TPM) <https://andysbrainbook.readthedocs.io/en/latest/SPM/SPM_Short_Course/SPM_04_Preprocessing/04_SPM_Segmentation.html#tissue-probability-maps>, which contains the probability of each voxel belonging to a certain tissue type, or to create a label map with overlapping labels.

Intensity transforms are not applied to these images.

Nearest neighbor interpolation is always used to resample label maps, independently of the specified interpolation type in the transform instantiation.

Examples:

>>> import torch
>>> import torchio as tio
>>> binary_tensor = torch.rand(1, 128, 128, 68) > 0.5
>>> label_map = tio.LabelMap(tensor=binary_tensor)  # from a tensor
>>> label_map = tio.LabelMap('t1_seg.nii.gz')  # from a file
>>> # Create a 4D tissue probability map from different 3D images
>>> tissues = 'gray_matter.nii.gz', 'white_matter.nii.gz', 'csf.nii.gz'
>>> tpm = tio.LabelMap(tissues)

See Image for more information.

affine property writable

Affine matrix to transform voxel indices into world coordinates.

data property writable

Tensor data (same as [Image.tensor][]).

tensor property

Tensor data (same as [Image.data][]).

shape property

Tensor shape as \((C, W, H, D)\).

spatial_shape property

Tensor spatial shape as \((W, H, D)\).

height property

Image height, if 2D.

width property

Image width, if 2D.

orientation property

Orientation codes.

orientation_str property

Orientation as a string.

spacing property

Voxel spacing in mm.

origin property

Center of first voxel in array, in mm.

itemsize property

Element size of the data type.

memory property

Number of Bytes that the tensor takes in the RAM.

bounds property

Position of centers of voxels in smallest and largest indices.

num_channels property

Get the number of channels in the associated 4D tensor.

set_data(tensor)

Store a 4D tensor in the data key and attribute.

Parameters:

Name Type Description Default
tensor TypeData

4D tensor with dimensions \((C, W, H, D)\).

 required

axis_name_to_index(axis)

Convert an axis name to an axis index.

Parameters:

Name Type Description Default
axis str

Possible inputs are 'Left', 'Right', 'Anterior', 'Posterior', 'Inferior', 'Superior'. Lower-case versions and first letters are also valid, as only the first letter will be used.

 required
Note

If you are working with animals, you should probably use 'Superior', 'Inferior', 'Anterior' and 'Posterior' for 'Dorsal', 'Ventral', 'Rostral' and 'Caudal', respectively.

Note

If your images are 2D, you can use 'Top', 'Bottom', 'Left' and 'Right'.

flip_axis(axis) staticmethod

Return the opposite axis label. For example, 'L' -> 'R'.

Parameters:

Name Type Description Default
axis str

Axis label, such as 'L' or 'left'.

 required

get_bounds()

Get minimum and maximum world coordinates occupied by the image.

load()

Load the image from disk.

Returns:

Type Description
None

Tuple containing a 4D tensor of size \((C, W, H, D)\) and a 2D
None

\(4 \times 4\) affine matrix to convert voxel indices to world
None

coordinates.

unload()

Unload the image from memory.

Raises:

Type Description
RuntimeError

If the images has not been loaded yet or if no path is available.

save(path, squeeze=None)

Save image to disk.

Parameters:

Name Type Description Default
path TypePath

String or instance of pathlib.Path.

 required
squeeze bool | None

Whether to remove singleton dimensions before saving. If None, the array will be squeezed if the output format is JP(E)G, PNG, BMP or TIF(F).

 None

numpy()

Get a NumPy array containing the image data.

as_sitk(**kwargs)

Get the image as an instance of [sitk.Image][].

from_sitk(sitk_image) classmethod

Instantiate a new TorchIO image from a [sitk.Image][].

Examples:

>>> import torchio as tio
>>> import SimpleITK as sitk
>>> sitk_image = sitk.Image(20, 30, 40, sitk.sitkUInt16)
>>> tio.LabelMap.from_sitk(sitk_image)
LabelMap(shape: (1, 20, 30, 40); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 93.8 KiB; dtype: torch.IntTensor)
>>> sitk_image = sitk.Image((224, 224), sitk.sitkVectorFloat32, 3)
>>> tio.ScalarImage.from_sitk(sitk_image)
ScalarImage(shape: (3, 224, 224, 1); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 588.0 KiB; dtype: torch.FloatTensor)

as_pil(transpose=True)

Get the image as an instance of [PIL.Image][].

Note

Values will be clamped to 0-255 and cast to uint8.

Note

To use this method, Pillow needs to be installed: pip install Pillow.

to_gif(axis, duration, output_path, loop=0, rescale=True, optimize=True, reverse=False)

Save an animated GIF of the image.

Parameters:

Name Type Description Default
axis int

Spatial axis (0, 1 or 2).

 required
duration float

Duration of the full animation in seconds.

 required
output_path TypePath

Path to the output GIF file.

 required
loop int

Number of times the GIF should loop. 0 means that it will loop forever.

 0
rescale bool

Use RescaleIntensity to rescale the intensity values to \([0, 255]\).

 True
optimize bool

If True, attempt to compress the palette by eliminating unused colors. This is only useful if the palette can be compressed to the next smaller power of 2 elements.

 True
reverse bool

Reverse the temporal order of frames.

 False

get_center(lps=False)

Get image center in RAS+ or LPS+ coordinates.

Parameters:

Name Type Description Default
lps bool

If True, the coordinates will be in LPS+ orientation, i.e. the first dimension grows towards the left, etc. Otherwise, the coordinates will be in RAS+ orientation.

 False

plot(return_fig=False, **kwargs)

Plot image.

show(viewer_path=None)

Open the image using external software.

Parameters:

Name Type Description Default
viewer_path TypePath | None

Path to the application used to view the image. If None, the value of the environment variable SITK_SHOW_COMMAND will be used. If this variable is also not set, TorchIO will try to guess the location of ITK-SNAP and 3D Slicer .

 None

Raises:

Type Description
RuntimeError

If the viewer is not found.

count_nonzero()

Get the number of voxels that are not 0.

count_labels()

Get the number of voxels in each label.



Bases: dict

TorchIO image.

For information about medical image orientation, check out NiBabel docs, the 3D Slicer wiki, Graham Wideman's website, FSL docs or SimpleITK docs.

Parameters:

Name Type Description Default
path TypePath | Sequence[TypePath] | None

Path to a file or sequence of paths to files that can be read by [SimpleITK][] or [nibabel][], or to a directory containing DICOM files. If tensor is given, the data in path will not be read. If a sequence of paths is given, data will be concatenated on the channel dimension so spatial dimensions must match.

 None
type str | None

Type of image, such as torchio.INTENSITY or torchio.LABEL. This will be used by the transforms to decide whether to apply an operation, or which interpolation to use when resampling. For example, preprocessing and augmentation intensity transforms will only be applied to images with type torchio.INTENSITY. Spatial transforms will be applied to all types, and nearest neighbor interpolation is always used to resample images with type torchio.LABEL. The type torchio.SAMPLING_MAP may be used with instances of WeightedSampler.

 None
tensor TypeData | None

If path is not given, tensor must be a 4D torch.Tensor or NumPy array with dimensions \((C, W, H, D)\).

 None
affine TypeData | None

\(4 \times 4\) matrix to convert voxel coordinates to world coordinates. If None, an identity matrix will be used. See the NiBabel docs on coordinates for more information.

 None
check_nans bool

If True, issues a warning if NaNs are found in the image. If False, images will not be checked for the presence of NaNs.

 False
reader Callable[[TypePath], TypeDataAffine]

Callable object that takes a path and returns a 4D tensor and a 2D, \(4 \times 4\) affine matrix. This can be used if your data is saved in a custom format, such as .npy (see example below). If the affine matrix is None, an identity matrix will be used.

 read_image
**kwargs dict[str, Any]

Items that will be added to the image dictionary, e.g. acquisition parameters or image ID.

 {}
verify_path bool

If True, the path will be checked to see if it exists. If False, the path will not be verified. This is useful when it is expensive to check the path, e.g., when reading a large dataset from a mounted drive.

 True

TorchIO images are lazy loaders, i.e. the data is only loaded from disk when needed.

Examples:

>>> import torchio as tio
>>> import numpy as np
>>> image = tio.ScalarImage('t1.nii.gz')  # subclass of Image
>>> image  # not loaded yet
ScalarImage(path: t1.nii.gz; type: intensity)
>>> times_two = 2 * image.data  # data is loaded and cached here
>>> image
ScalarImage(shape: (1, 256, 256, 176); spacing: (1.00, 1.00, 1.00); orientation: PIR+; memory: 44.0 MiB; type: intensity)
>>> image.save('doubled_image.nii.gz')
>>> def numpy_reader(path):
...     data = np.load(path).as_type(np.float32)
...     affine = np.eye(4)
...     return data, affine
>>> image = tio.ScalarImage('t1.npy', reader=numpy_reader)

affine property writable

Affine matrix to transform voxel indices into world coordinates.

data property writable

Tensor data (same as [Image.tensor][]).

tensor property

Tensor data (same as [Image.data][]).

shape property

Tensor shape as \((C, W, H, D)\).

spatial_shape property

Tensor spatial shape as \((W, H, D)\).

height property

Image height, if 2D.

width property

Image width, if 2D.

orientation property

Orientation codes.

orientation_str property

Orientation as a string.

spacing property

Voxel spacing in mm.

origin property

Center of first voxel in array, in mm.

itemsize property

Element size of the data type.

memory property

Number of Bytes that the tensor takes in the RAM.

bounds property

Position of centers of voxels in smallest and largest indices.

num_channels property

Get the number of channels in the associated 4D tensor.

set_data(tensor)

Store a 4D tensor in the data key and attribute.

Parameters:

Name Type Description Default
tensor TypeData

4D tensor with dimensions \((C, W, H, D)\).

 required

axis_name_to_index(axis)

Convert an axis name to an axis index.

Parameters:

Name Type Description Default
axis str

Possible inputs are 'Left', 'Right', 'Anterior', 'Posterior', 'Inferior', 'Superior'. Lower-case versions and first letters are also valid, as only the first letter will be used.

 required
Note

If you are working with animals, you should probably use 'Superior', 'Inferior', 'Anterior' and 'Posterior' for 'Dorsal', 'Ventral', 'Rostral' and 'Caudal', respectively.

Note

If your images are 2D, you can use 'Top', 'Bottom', 'Left' and 'Right'.

flip_axis(axis) staticmethod

Return the opposite axis label. For example, 'L' -> 'R'.

Parameters:

Name Type Description Default
axis str

Axis label, such as 'L' or 'left'.

 required

get_bounds()

Get minimum and maximum world coordinates occupied by the image.

load()

Load the image from disk.

Returns:

Type Description
None

Tuple containing a 4D tensor of size \((C, W, H, D)\) and a 2D
None

\(4 \times 4\) affine matrix to convert voxel indices to world
None

coordinates.

unload()

Unload the image from memory.

Raises:

Type Description
RuntimeError

If the images has not been loaded yet or if no path is available.

save(path, squeeze=None)

Save image to disk.

Parameters:

Name Type Description Default
path TypePath

String or instance of pathlib.Path.

 required
squeeze bool | None

Whether to remove singleton dimensions before saving. If None, the array will be squeezed if the output format is JP(E)G, PNG, BMP or TIF(F).

 None

numpy()

Get a NumPy array containing the image data.

as_sitk(**kwargs)

Get the image as an instance of [sitk.Image][].

from_sitk(sitk_image) classmethod

Instantiate a new TorchIO image from a [sitk.Image][].

Examples:

>>> import torchio as tio
>>> import SimpleITK as sitk
>>> sitk_image = sitk.Image(20, 30, 40, sitk.sitkUInt16)
>>> tio.LabelMap.from_sitk(sitk_image)
LabelMap(shape: (1, 20, 30, 40); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 93.8 KiB; dtype: torch.IntTensor)
>>> sitk_image = sitk.Image((224, 224), sitk.sitkVectorFloat32, 3)
>>> tio.ScalarImage.from_sitk(sitk_image)
ScalarImage(shape: (3, 224, 224, 1); spacing: (1.00, 1.00, 1.00); orientation: LPS+; memory: 588.0 KiB; dtype: torch.FloatTensor)

as_pil(transpose=True)

Get the image as an instance of [PIL.Image][].

Note

Values will be clamped to 0-255 and cast to uint8.

Note

To use this method, Pillow needs to be installed: pip install Pillow.

to_gif(axis, duration, output_path, loop=0, rescale=True, optimize=True, reverse=False)

Save an animated GIF of the image.

Parameters:

Name Type Description Default
axis int

Spatial axis (0, 1 or 2).

 required
duration float

Duration of the full animation in seconds.

 required
output_path TypePath

Path to the output GIF file.

 required
loop int

Number of times the GIF should loop. 0 means that it will loop forever.

 0
rescale bool

Use RescaleIntensity to rescale the intensity values to \([0, 255]\).

 True
optimize bool

If True, attempt to compress the palette by eliminating unused colors. This is only useful if the palette can be compressed to the next smaller power of 2 elements.

 True
reverse bool

Reverse the temporal order of frames.

 False

get_center(lps=False)

Get image center in RAS+ or LPS+ coordinates.

Parameters:

Name Type Description Default
lps bool

If True, the coordinates will be in LPS+ orientation, i.e. the first dimension grows towards the left, etc. Otherwise, the coordinates will be in RAS+ orientation.

 False

plot(return_fig=False, **kwargs)

Plot image.

show(viewer_path=None)

Open the image using external software.

Parameters:

Name Type Description Default
viewer_path TypePath | None

Path to the application used to view the image. If None, the value of the environment variable SITK_SHOW_COMMAND will be used. If this variable is also not set, TorchIO will try to guess the location of ITK-SNAP and 3D Slicer .

 None

Raises:

Type Description
RuntimeError

If the viewer is not found.
