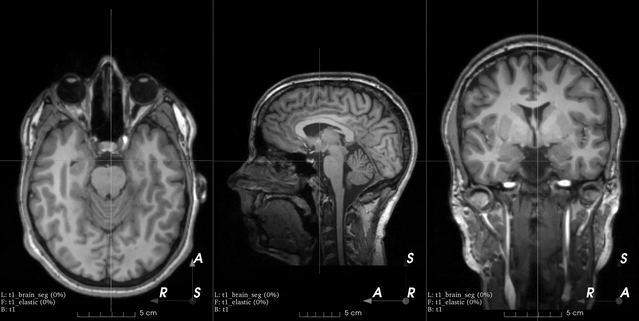

RandomElasticDeformation

Random elastic deformation

`RandomElasticDeformation`

Bases: RandomTransform, SpatialTransform

Apply dense random elastic deformation.

A random displacement is assigned to a coarse grid of control points around and inside the image. The displacement at each voxel is interpolated from the coarse grid using cubic B-splines.

The 'Deformable Registration' topic on ScienceDirect contains useful articles explaining interpolation of displacement fields using cubic B-splines.

Warning

This transform is slow as it requires expensive computations. If your images are large you might want to use RandomAffine instead.

Parameters:

Name	Type	Description	Default
`num_control_points`	`int \| TypeTripletInt`	Number of control points along each dimension of the coarse grid \((n_x, n_y, n_z)\). If a single value \(n\) is passed, then \(n_x = n_y = n_z = n\). Smaller numbers generate smoother deformations. The minimum number of control points is `4` as this transform uses cubic B-splines to interpolate displacement.	`7`
`max_displacement`	`float \| TypeTripletFloat`	Maximum displacement along each dimension at each control point \((D_x, D_y, D_z)\). The displacement along dimension \(i\) at each control point is \(d_i \sim \mathcal{U}(0, D_i)\). If a single value \(D\) is passed, then \(D_x = D_y = D_z = D\). Note that the total maximum displacement would actually be \(D_{max} = \sqrt{D_x^2 + D_y^2 + D_z^2}\).	`7.5`
`locked_borders`	`int`	If `0`, all displacement vectors are kept. If `1`, displacement of control points at the border of the coarse grid will be set to `0`. If `2`, displacement of control points at the border of the image (red dots in the image below) will also be set to `0`.	`2`
`image_interpolation`	`str`	See Interpolation. Note that this is the interpolation used to compute voxel intensities when resampling using the dense displacement field. The value of the dense displacement at each voxel is always interpolated with cubic B-splines from the values at the control points of the coarse grid.	`'linear'`
`label_interpolation`	`str`	See Interpolation.	`'nearest'`
`**kwargs`		See `Transform` for additional keyword arguments.	`{}`

This gist can also be used to better understand the meaning of the parameters.

This is an example from the 3D Slicer registration FAQ .

B-spline example from 3D Slicer documentation

To generate a similar grid of control points with TorchIO, the transform can be instantiated as follows:

Examples:

>>> from torchio import RandomElasticDeformation
>>> transform = RandomElasticDeformation(
...     num_control_points=(7, 7, 7),  # or just 7
...     locked_borders=2,
... )

Note that control points outside the image bounds are not showed in the example image (they would also be red as we set locked_borders to 2).

Warning

Image folding may occur if the maximum displacement is larger than half the coarse grid spacing. The grid spacing can be computed using the image bounds in physical space and the number of control points.

Using a max_displacement larger than the computed potential_folding will raise a RuntimeWarning.

Technically, \(2 \epsilon\) should be added to the image bounds, where \(\epsilon = 2^{-3}\) according to ITK source code.

Examples:

>>> import numpy as np
>>> import torchio as tio
>>> image = tio.datasets.Slicer().MRHead.as_sitk()
>>> image.GetSize()  # in voxels
(256, 256, 130)
>>> image.GetSpacing()  # in mm
(1.0, 1.0, 1.2999954223632812)
>>> bounds = np.array(image.GetSize()) * np.array(image.GetSpacing())
>>> bounds  # mm
array([256.        , 256.        , 168.99940491])
>>> num_control_points = np.array((7, 7, 6))
>>> grid_spacing = bounds / (num_control_points - 2)
>>> grid_spacing
array([51.2       , 51.2       , 42.24985123])
>>> potential_folding = grid_spacing / 2
>>> potential_folding  # mm
array([25.6       , 25.6       , 21.12492561])

`call(data)`

Transform data and return a result of the same type.

Parameters:

Name	Type	Description	Default
`data`	`InputType`	Instance of `torchio.Subject`, 4D `torch.Tensor` or `numpy.ndarray` with dimensions \((C, W, H, D)\), where \(C\) is the number of channels and \(W, H, D\) are the spatial dimensions. If the input is a tensor, the affine matrix will be set to identity. Other valid input types are a SimpleITK image, a `torchio.Image`, a NiBabel Nifti1 image or a `dict`. The output type is the same as the input type.	required

`get_base_args()`

Provides easy access to the arguments used to instantiate the base class (Transform) of any transform.

This method is particularly useful when a new transform can be represented as a variant of an existing transform (e.g. all random transforms), allowing for seamless instantiation of the existing transform with the same arguments as the new transform during apply_transform.

Note

The p argument (probability of applying the transform) is excluded to avoid multiplying the probability of both existing and new transform.

`add_base_args(arguments, overwrite_on_existing=False)`

Add the init args to existing arguments

`validate_keys_sequence(keys, name)` `staticmethod`

Ensure that the input is not a string but a sequence of strings.

`to_hydra_config()`

Return a dictionary representation of the transform for Hydra instantiation.

RandomElasticDeformation
