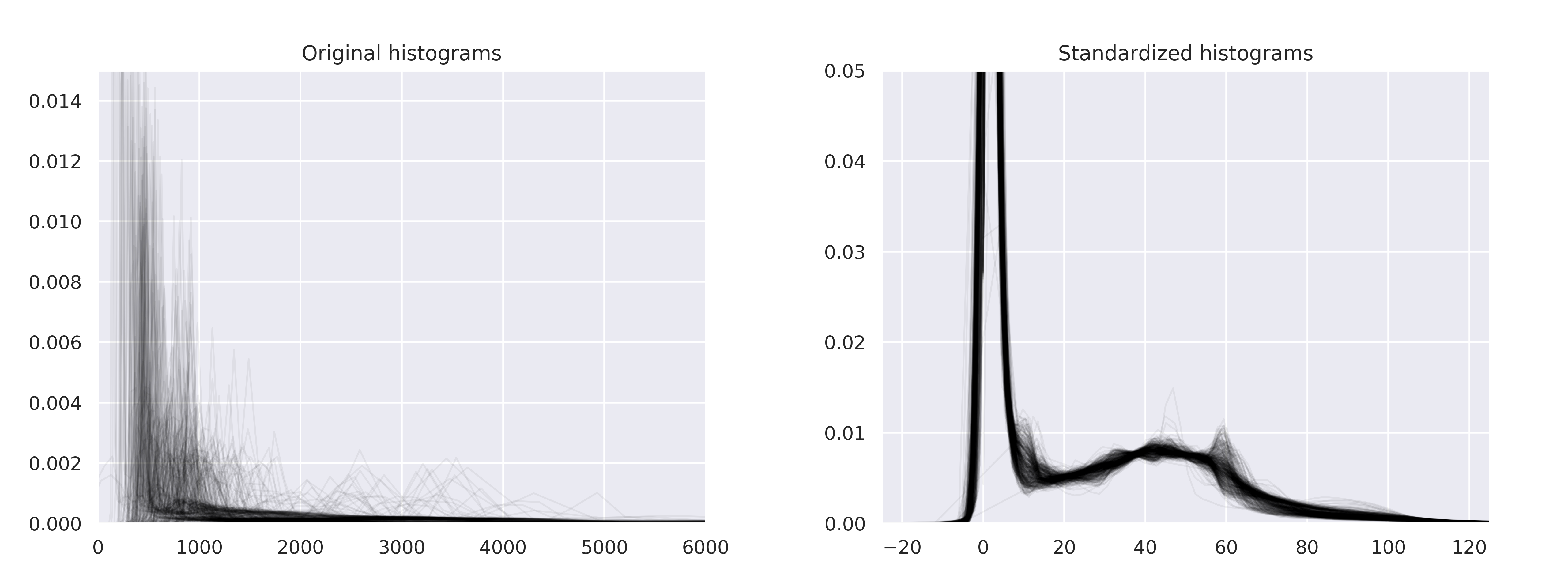

Histogram standardization

`HistogramStandardization`

Bases: NormalizationTransform

Perform histogram standardization of intensity values.

Implementation of New variants of a method of MRI scale standardization .

See example in torchio.transforms.HistogramStandardization.train().

Parameters:

Name	Type	Description	Default
`landmarks`	`TypeLandmarks`	Dictionary (or path to a PyTorch file with `.pt` or `.pth` extension in which a dictionary has been saved) whose keys are image names in the subject and values are NumPy arrays or paths to NumPy arrays defining the landmarks after training with `torchio.transforms.HistogramStandardization.train()`.	required
`masking_method`	`TypeMaskingMethod`	See `NormalizationTransform`.	`None`
`**kwargs`		See `Transform` for additional keyword arguments.	`{}`

Examples:

>>> import torch
>>> import torchio as tio
>>> landmarks = {
...     't1': 't1_landmarks.npy',
...     't2': 't2_landmarks.npy',
... }
>>> transform = tio.HistogramStandardization(landmarks)
>>> torch.save(landmarks, 'path_to_landmarks.pth')
>>> transform = tio.HistogramStandardization('path_to_landmarks.pth')

`probability = self.parse_probability(p)` `instance-attribute`

`copy = copy` `instance-attribute`

`keep = keep` `instance-attribute`

`parse_input = parse_input` `instance-attribute`

`label_keys = label_keys` `instance-attribute`

`name` `property`

`masking_method = masking_method` `instance-attribute`

`landmarks = landmarks` `instance-attribute`

`landmarks_dict = self._parse_landmarks(landmarks)` `instance-attribute`

`args_names = ['landmarks', 'masking_method']` `instance-attribute`

`call(data)`

Transform data and return a result of the same type.

Parameters:

Name	Type	Description	Default
`data`	`InputType`	Instance of `torchio.Subject`, 4D `torch.Tensor` or `numpy.ndarray` with dimensions \((C, W, H, D)\), where \(C\) is the number of channels and \(W, H, D\) are the spatial dimensions. If the input is a tensor, the affine matrix will be set to identity. Other valid input types are a SimpleITK image, a `torchio.Image`, a NiBabel Nifti1 image or a `dict`. The output type is the same as the input type.	required

`repr()`

`get_base_args()`

Provides easy access to the arguments used to instantiate the base class (Transform) of any transform.

This method is particularly useful when a new transform can be represented as a variant of an existing transform (e.g. all random transforms), allowing for seamless instantiation of the existing transform with the same arguments as the new transform during apply_transform.

Note

The p argument (probability of applying the transform) is excluded to avoid multiplying the probability of both existing and new transform.

`add_base_args(arguments, overwrite_on_existing=False)`

Add the init args to existing arguments

`apply_transform(subject)`

`add_transform_to_subject_history(subject)`

`to_range(n, around)` `staticmethod`

`parse_params(params, around, name, make_ranges=True, **kwargs)`

`_parse_range(nums_range, name, min_constraint=None, max_constraint=None, type_constraint=None)` `staticmethod`

Adapted from [torchvision.transforms.RandomRotation][].

Parameters:

Name	Type	Description	Default
`nums_range`	`TypeNumber \| tuple[TypeNumber, TypeNumber]`	Tuple of two numbers \((n_{min}, n_{max})\), where \(n_{min} \leq n_{max}\). If a single positive number \(n\) is provided, \(n_{min} = -n\) and \(n_{max} = n\).	required
`name`	`str`	Name of the parameter, so that an informative error message can be printed.	required
`min_constraint`	`TypeNumber \| None`	Minimal value that \(n_{min}\) can take, default is None, i.e. there is no minimal value.	`None`
`max_constraint`	`TypeNumber \| None`	Maximal value that \(n_{max}\) can take, default is None, i.e. there is no maximal value.	`None`
`type_constraint`	`type \| None`	Precise type that \(n_{max}\) and \(n_{min}\) must take.	`None`

Returns:

Type	Description
`tuple[TypeNumber, TypeNumber]`	A tuple of two numbers \((n_{min}, n_{max})\).

Raises:

Type	Description
`ValueError`	if `nums_range` is negative
`ValueError`	if \(n_{max}\) or \(n_{min}\) is not a number
`ValueError`	if \(n_{max} \lt n_{min}\)
`ValueError`	if `min_constraint` is not None and \(n_{min}\) is smaller than `min_constraint`
`ValueError`	if `max_constraint` is not None and \(n_{max}\) is greater than `max_constraint`
`ValueError`	if `type_constraint` is not None and \(n_{max}\) and \(n_{max}\) are not of type `type_constraint`.

`parse_interpolation(interpolation)` `staticmethod`

`parse_probability(probability)` `staticmethod`

`parse_include_and_exclude_keys(include, exclude, label_keys)` `staticmethod`

`validate_keys_sequence(keys, name)` `staticmethod`

Ensure that the input is not a string but a sequence of strings.

`nib_to_sitk(data, affine)` `staticmethod`

`sitk_to_nib(image)` `staticmethod`

`_get_reproducing_arguments()`

Return a dictionary with the arguments that would be necessary to reproduce the transform exactly.

`is_invertible()`

`inverse()`

`_use_seed(seed)` `staticmethod`

Perform an operation using a specific seed for the PyTorch RNG.

`get_sitk_interpolator(interpolation)` `staticmethod`

`parse_bounds(bounds_parameters)` `staticmethod`

`ones(tensor)` `staticmethod`

`mean(tensor)` `staticmethod`

`get_mask_from_masking_method(masking_method, subject, tensor, labels=None)`

`get_mask_from_anatomical_label(anatomical_label, tensor)` `staticmethod`

`get_mask_from_bounds(bounds_parameters, tensor)`

`_get_name_with_module()`

Return the name of the transform including its module.

`_tuples_to_lists(obj)` `staticmethod`

`to_hydra_config()`

Return a dictionary representation of the transform for Hydra instantiation.

`get_images_dict(subject)`

`get_images(subject)`

`arguments_are_dict()`

Check if main arguments are dict.

Return True if the type of all attributes specified in the args_names have dict type.

`init(landmarks, masking_method=None, **kwargs)`

`_parse_landmarks(landmarks)` `staticmethod`

`apply_normalization(subject, image_name, mask)`

`train(images_paths, cutoff=None, mask_path=None, masking_function=None, output_path=None, *, progress=True)` `classmethod`

Extract average histogram landmarks from images used for training.

Parameters:

Name	Type	Description	Default
`images_paths`	`Sequence[TypePath]`	List of image paths used to train.	required
`cutoff`	`tuple[float, float] \| None`	Optional minimum and maximum quantile values, respectively, that are used to select a range of intensity of interest. Equivalent to \(pc_1\) and \(pc_2\) in Nyúl and Udupa's paper .	`None`
`mask_path`	`Sequence[TypePath] \| TypePath \| None`	Path (or list of paths) to a binary image that will be used to select the voxels use to compute the stats during histogram training. If `None`, all voxels in the image will be used.	`None`
`masking_function`	`Callable \| None`	Function used to extract voxels used for histogram training.	`None`
`output_path`	`TypePath \| None`	Optional file path with extension `.txt` or `.npy`, where the landmarks will be saved.	`None`

Examples:

>>> import torch
>>> import numpy as np
>>> from pathlib import Path
>>> from torchio.transforms import HistogramStandardization
>>>
>>> t1_paths = ['subject_a_t1.nii', 'subject_b_t1.nii.gz']
>>> t2_paths = ['subject_a_t2.nii', 'subject_b_t2.nii.gz']
>>>
>>> t1_landmarks_path = Path('t1_landmarks.npy')
>>> t2_landmarks_path = Path('t2_landmarks.npy')
>>>
>>> t1_landmarks = (
...     t1_landmarks_path
...     if t1_landmarks_path.is_file()
...     else HistogramStandardization.train(t1_paths)
... )
>>> np.save(t1_landmarks_path, t1_landmarks)
>>>
>>> t2_landmarks = (
...     t2_landmarks_path
...     if t2_landmarks_path.is_file()
...     else HistogramStandardization.train(t2_paths)
... )
>>> np.save(t2_landmarks_path, t2_landmarks)
>>>
>>> landmarks_dict = {
...     't1': t1_landmarks,
...     't2': t2_landmarks,
... }
>>>
>>> transform = HistogramStandardization(landmarks_dict)
